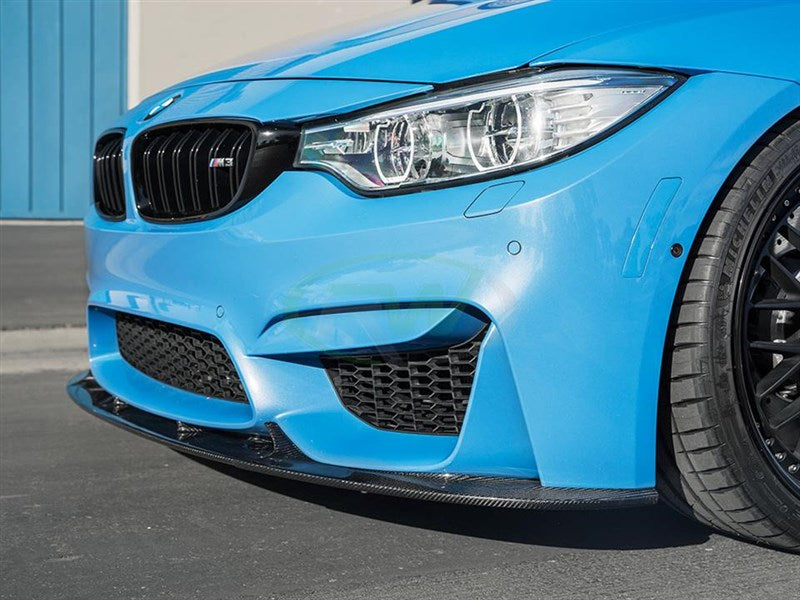

How to Install a Carbon Fiber Front Splitter — Step-by-Step Guide

A carbon fiber front splitter is one of the most impactful visual and aerodynamic upgrades you can make to a performance car. It reframes the entire front end, lowers the visual centre of gravity, and on track generates measurable front-end downforce. Best of all, it's one of the more approachable installations in the world of aftermarket bodywork — no cutting, no welding, and no specialist tools required for most fitments.

This guide walks through the full installation process, from unboxing to final fitment check.

What You'll Need

Before you start, gather the following: a set of plastic trim removal tools (avoid metal), a drill with small bit set, a screwdriver set, M6 bolts and nylock nuts (usually supplied with the splitter), thread-locking compound, a torque wrench, masking tape, a marker pen, and a second pair of hands for the fitting stage. Optionally, have some clear lacquer or epoxy on hand to seal any freshly drilled edges.

Step 1 — Inspect the Splitter Before Fitting

Before you touch your car, thoroughly inspect the carbon fiber splitter for any damage from transit. Check the weave for delamination, cracks around any pre-drilled holes, and verify that all mounting hardware is included. Carbon fiber can be damaged during shipping without obvious external signs — flex the piece gently along its length and listen for any cracking sounds that might indicate internal damage.

Also verify the basic fitment: hold the splitter up to your bumper and check that the contour matches your car's lower bumper line. Any significant gaps at this stage indicate a fitment issue that needs to be resolved before proceeding.

Step 2 — Clean and Prepare the Bumper

Clean the underside and lower face of your front bumper thoroughly. Any dirt, wax, or debris in this area will prevent the splitter from sitting flush and will complicate any adhesive mounting. Finish with an isopropyl alcohol wipe-down to degrease all contact surfaces.

If your bumper has an existing lower lip or undertray section that needs to be removed to accommodate the splitter, do this now. Most modern performance car bumpers have a removable lower section held by plastic clips — use your trim tools carefully to avoid cracking.

Step 3 — Dry Fit and Mark Mounting Points

With a second person holding the splitter in position, dry fit the piece against the bumper before drilling or fastening anything. The splitter should sit flush against the bumper's lower edge with consistent projection on both sides. If it's not sitting level, check whether the bumper itself is correctly aligned — a slightly misaligned bumper will transfer its imperfection to any panel fitted below it.

Once you're happy with the position, use masking tape and a marker pen to mark the mounting point locations on both the splitter and the bumper. This is your reference for drilling.

Step 4 — Drill Mounting Holes

If your splitter doesn't come with pre-drilled holes matching your car's bumper layout, you'll need to drill them. Use a sharp bit sized to match your supplied hardware — typically 6mm or 8mm. Drill slowly through the carbon to avoid cracking the weave, and back the drilling point with a block of wood to prevent blow-out on the exit side.

Seal any freshly drilled edges immediately with clear lacquer or epoxy to prevent moisture ingress, which over time can cause delamination from the inside out.

Step 5 — Fit and Fasten

With holes drilled and surfaces clean, fit the splitter permanently. On most installations this involves M6 bolts passing upward through the splitter into captive nuts or brackets on the bumper underside. Apply a small amount of thread-locking compound to each bolt before fastening.

Do not fully torque any bolt until all hardware is in place and you've done a final visual check of the splitter's position. Once everything looks correct, torque bolts to the specification supplied with your kit — typically 8–10Nm for M6 fasteners into carbon. Over-tightening will crack the fiber.

Step 6 — Final Check

Stand back and check the fitment from multiple angles: front-on, from each corner, and from the side at ground level. The splitter should sit parallel to the ground, flush against the bumper, and with consistent overhang on both sides. Any twist, sag, or gap at the bumper join indicates a mounting point needs adjustment.

Take the car for a slow drive and check that the splitter doesn't contact the ground over speed bumps and driveway lips at your normal approach angle. Carbon fiber will not flex like a factory plastic lip — it will crack under impact.

Tips for a Perfect Result

Use stainless steel hardware throughout to prevent corrosion staining on the carbon surface. If your splitter is gloss finished, apply a thin coat of UV-resistant clear wax after installation to protect the lacquer from UV degradation. For track use, consider adding safety tether cables between the splitter and the bumper — if the splitter is struck at speed, tethers prevent it from becoming a road hazard.
